The Anderson Connector product range are an industry leading family of electrical connectors developed by the global Anderson Power Products. Anderson connectors are the world leader in high current and waterproof DC electrical connectors. APP are the leading global developer and manufacturer of high power interconnect solutions.
Anderson plug sizes, cable sizes, and Anderson connector sizes sometimes cause a little confusion. A question that commonly raises its head when it comes to the installation and use of Anderson connectors is – what cable size should be used with an Anderson Connector?
Firstly, let’s examine how the connector works and why it is such a popular choice.
The genderless connection makes them very easy to use. You do not have to worry about colour, direction or version of the unit as they are readily compatible with one another. The genderless hermaphroditic state of the Andersen connector means that the mating surface of the unit includes both male and female aspects with complementary paired identical parts each containing protrusions and indentations. This set up is ideal when it comes to saving time and ensuring simple and quick compatibility. And there are a range of Anderson connectors sizes to choose from.
Are Anderson Connectors Waterproof?
Yes, Anderson are the world leading manufacturer of high current and waterproof DC electrical connectors – the anderson plug / connector range are waterproof and suitable: for outdoor use.
Take a moment to take a look at each, and the appropriate cable size that should be used in each instance. The anderson plug amp rating connectors of SOA, 175A, and 350A cover the vast majority of applications
What Cable Size Do I Need for my Anderson Connectors?
For the 50 Amp Grey Anderson connector you should be using 16mm battery cable. This cable is available on truck electrics in black or red and is sold in 10 meter roll. The cable is petrol offs and acid resistant and is rated to 110 Amps.

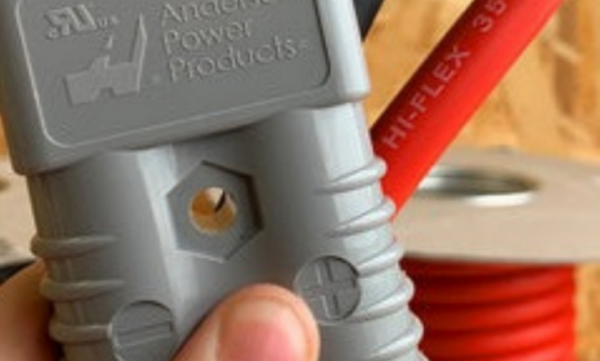

For the 175 Amp Grey Anderson connector you should be using 35mm battery cable. This cable is available on site in black or red and is sod in 10 meter rolls The cable is petrol, oils and acid resistant and s rated to 240 Amps.
For the 350 Amp Grey Anderson connector you should be using 50mm battery starter cable. This cable is available on site in either black or red and is sold in 10 meter rolls. The cable is petrol, oils and acid resistant and has conductor specification of 395/0.40.
